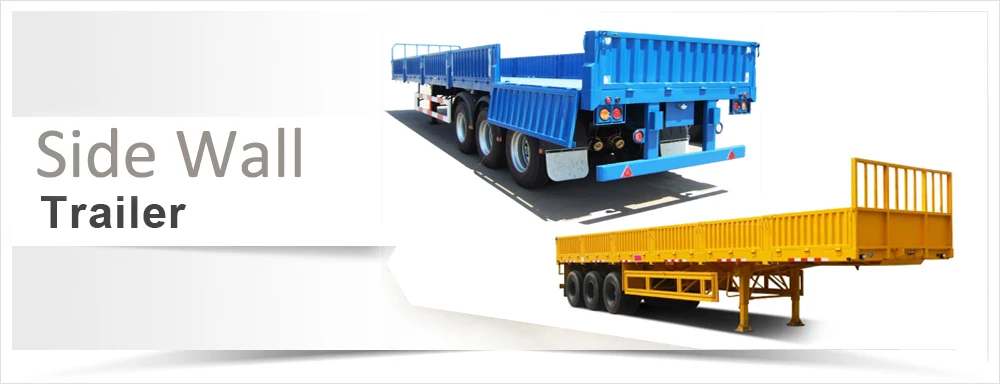

Tri Axles Utility Trailers Flatbed Detachable Sidewall Semi Truck Tractor Trailers For Cargo Carrier

Product Categories

Qingdao Juyuan International Trading Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Tri Axles Utility Trailers Flatbed Detachable Sidewall Semi Truck Tractor Trailers For Cargo Carrier
Brand: AOTONG
Price: 1 USD

Brand Name : AOTONG

Certification : ISO CCC

Place of Origin : CHINA

Payment Terms : T/T

Delivery Time : 25 days

Axle : FUWA, BPW optional

Suspension : Air suspension

Tire : 315/80R22.5

Rim : Steel rim

Lights : LED

Electric : 24V

Contact Now

Usage:

Suitable for the mid/long distance transportation of the mid/heavy duty and bulk cargo

Specifications:

Basic Specifications	sidewall semi trailer
Overall Dimensions	12500-130002500600-1000mm or optional
Related load	50 tons
Tare weight	6000KGS
Running Gear
Axle	13T axle; 2/3 pieces
Tire	12.00R22.5; 8/12 pieces Triangle
Rim	8.5-22.5; 8/12 pieces
Suspension System	10pieces leaf spring 10mm
Brake System	Brake- double wheel cylinder with single diaphragm -Wabco mode; with load censer valve and trailer Triplex valve w/Quick release valve system assembly -standard emergency and service line air tubs assembly -Trailer lock valve assembly
Under Frame	specially I beam disagn for back side tipper
Outer frame	steel made conic edge
Cross member	reinforce with 42cm gap
Wheelbase	1310mm
Kingpin	2’ or 3.5’ interchangeable
Landing gear	Landing gear with 30T each other /brand jost
Electrical System	tail & reverse light reflectors operate with 24 volt circute
Light and reflectors	Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
Painting	Three coats painting; Any color will be available
Accessories
Toolbox	One tool box with a set of standard trailer tools
Spare tire carrier	one or two pieces
Fender	Plastic fenders
Container twistlocks	8/12 pieces

Tri Axles Utility Trailers Flatbed Detachable Sidewall Semi Truck Tractor Trailers For Cargo Carrier
